Schema Management

Schemas

Version: v1.0 Last updated: 2026-01-09

Schemas define the shape, structure, and validation rules for data stored in the platform.

Overview

A Schema is a managed entity that wraps a standard JSON Schema definition, enriched with:

A name and description
A category (field_group)
System vs custom designation
A reusable identifier

Once created, other entities (products, materials, facilities, custom data, etc.) can:

Reference a schema
Store data that must conform to that schema

Result: Data consistency, validation, and reuse across the platform.

Key Concepts

What is a Schema?

A Schema is:

A JSON Schema definition
Stored as a first-class business object
Referenced by other entities to validate and structure their data

Why Schemas Matter

Schemas allow you to:

Enforce consistent data shapes
Validate data automatically
Reuse definitions across multiple entities
Evolve data models safely over time

Typical use cases include:

Custom product attributes
Certification metadata
Regulatory or compliance data

Creating a Schema (UI)

Step 1: Navigate to Schemas

Go to Schemas → New Schema.

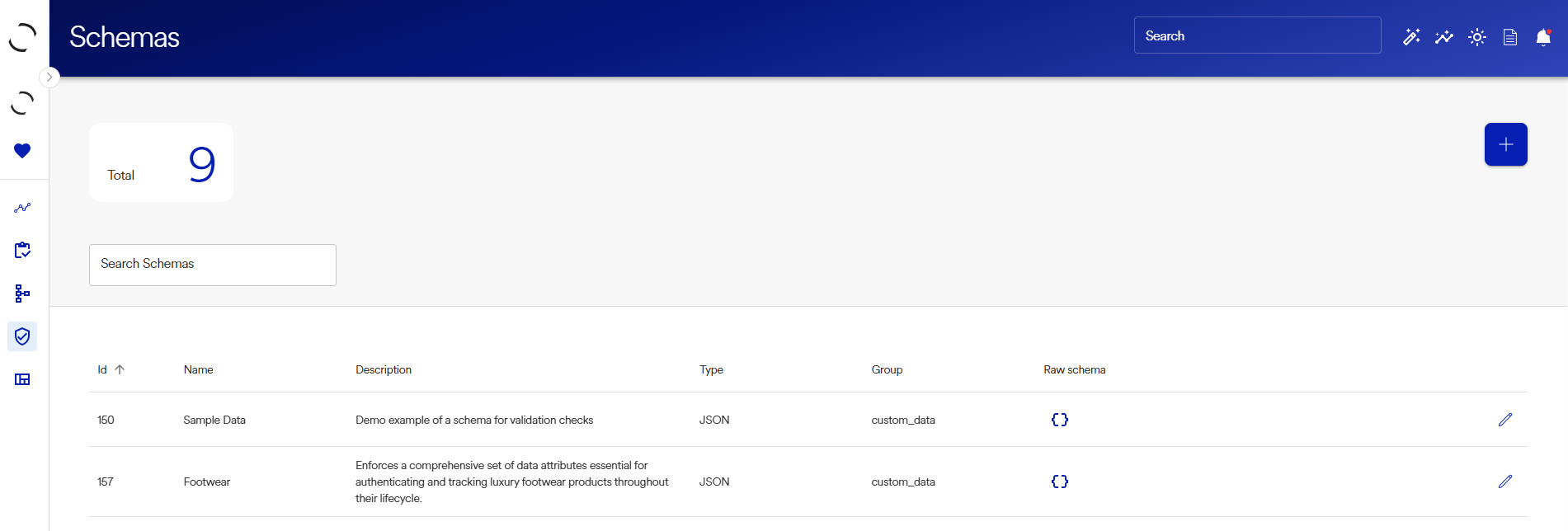

Schemas list view and New Schema screen — Example: Schemas list view and the New Schema form.

Step 2: Basic Information

Field	Description
Name	Human-readable schema name (max 255 chars)
Group	Category for organizing schemas (field group)
Description	Optional explanation of the schema’s purpose

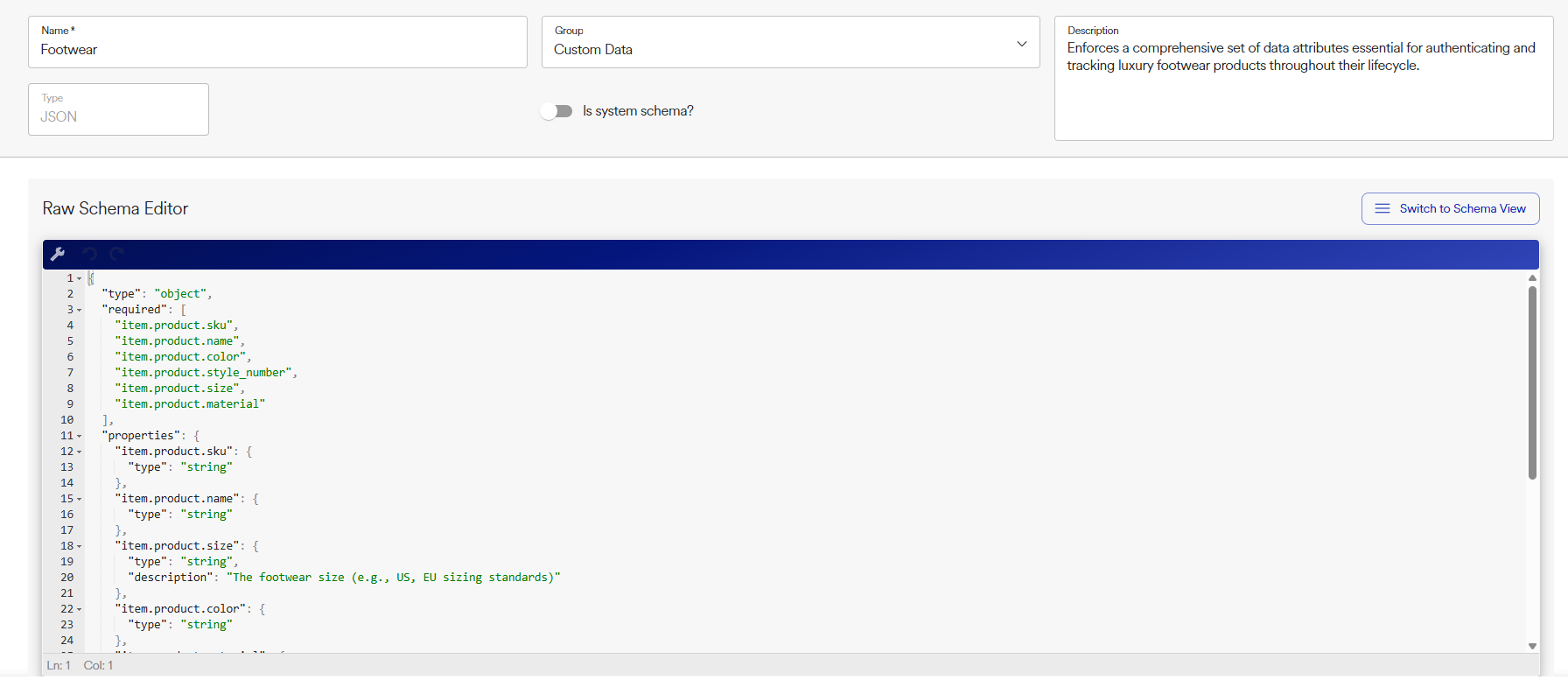

New Schema form with raw editor and schema view — Example: Schema editor (Raw Schema Editor + Schema View).

Step 3: Define the Schema (Raw Schema Editor)

In the Raw Schema Editor, enter a valid JSON Schema definition.

Example:

{
  "type": "object",
  "properties": {
    "custom_data": {
      "type": "object",
      "properties": {
        "custom_ean": { "type": "string" },
        "custom_gender": { "type": "string" },
        "custom_cx_type": { "type": "string" },
        "custom_category": { "type": "string" },
        "dms_status_sync": { "type": "string" },
        "custom_sales_line": { "type": "string" },
        "custom_fabric_code": { "type": "string" },
        "custom_care_generic": { "type": "string" },
        "custom_color_code_1": { "type": "string" },
        "custom_model_fabric": { "type": "string" },
        "custom_model_fabric_code": { "type": "string" }
      }
    }
  }
}

You can switch between Raw Schema Editor and Schema View for easier inspection.

Step 4: Save the Schema

Click Save to create the schema.

Once saved:

The schema is assigned a unique ID
It becomes available for reference by other entities
Validation is enforced wherever the schema is used

System vs Custom Schemas

Type	Description
System Schema	Managed by the platform; typically read-only
Custom Schema	Created and managed by your organization

The is_system_schema flag indicates whether the schema is platform-defined.

Field Groups

Schemas are organized using field groups, which act as logical categories.

Examples:

Material Structured Data
Facility Structured Data

You can retrieve available field groups via API.

How Schemas Are Used by Other Entities

Other entities can:

Reference a schema
Attach data
Have that data validated against the schema

Example flow:

Create a Schema called MaterialComposition
Assign it to a Product
Store structured material data
Automatically enforce validation rules

If the data does not conform, validation fails.

API Reference Summary

Create Schema

POST /api/v2/schemas/

{
  "name": "Material Composition",
  "description": "Defines material breakdown",
  "type": "JSON",
  "field_group": "custom_data",
  "is_system_schema": false,
  "raw_schema": {
    "type": "object",
    "properties": {
      "material": { "type": "string" },
      "percentage": { "type": "number" }
    },
    "required": ["material", "percentage"]
  }
}

Retrieve Field Group Options

GET /api/v2/schemas/field-groups/
Returns available schema categories.

Retrieve a System Schema

GET /api/v2/schemas/system/id/{id}/

List System Schemas

GET /api/internal/core/schemas/system/

Need more details? Contact our team or check out the full API reference for complete endpoint documentation, request/response models, and examples.

Validation Behavior

When data is associated with a schema:

Validation occurs automatically
Required fields must be present
Type constraints are enforced
Invalid data is rejected

This guarantees downstream consumers always receive structured, predictable data.
